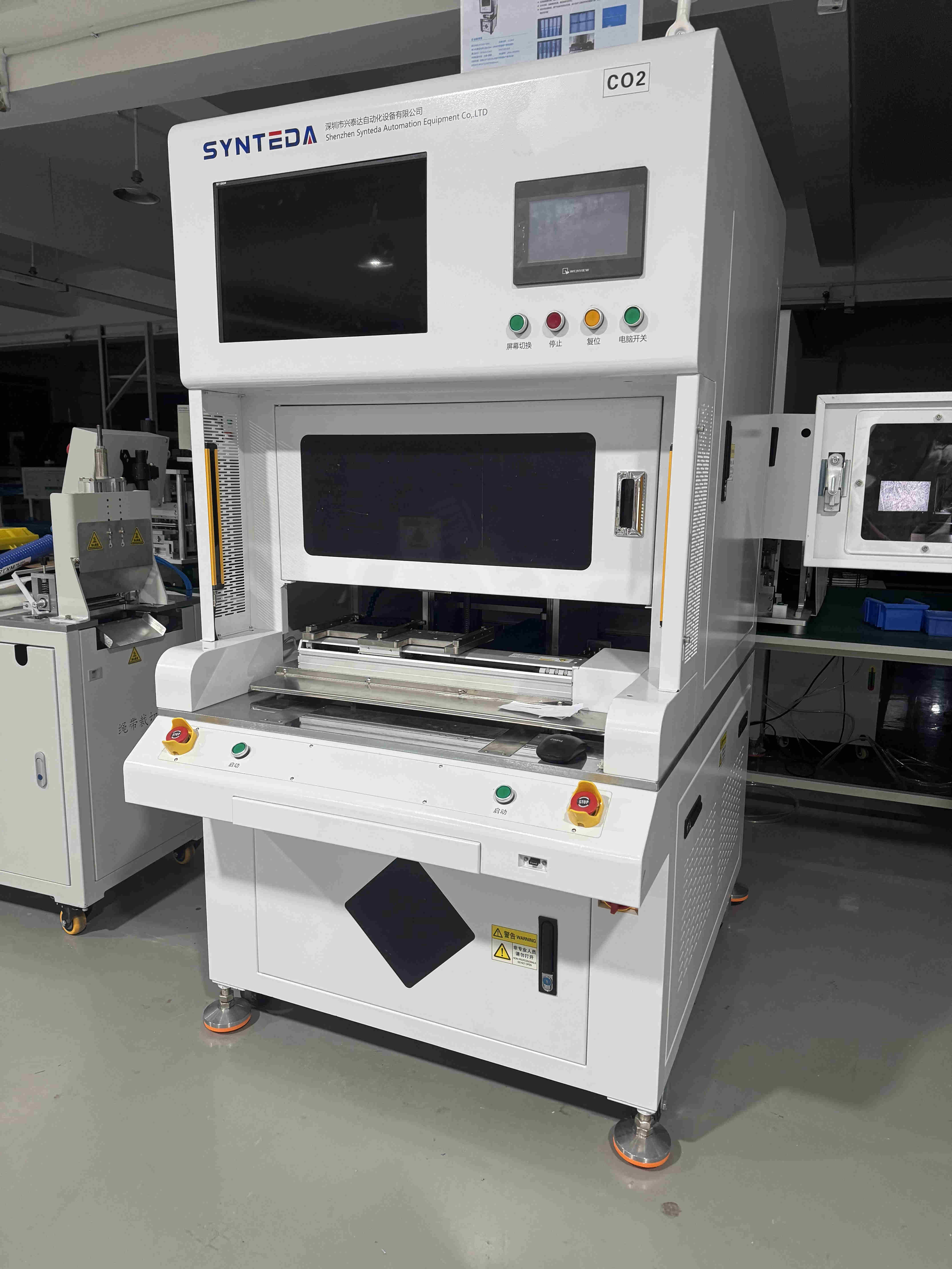

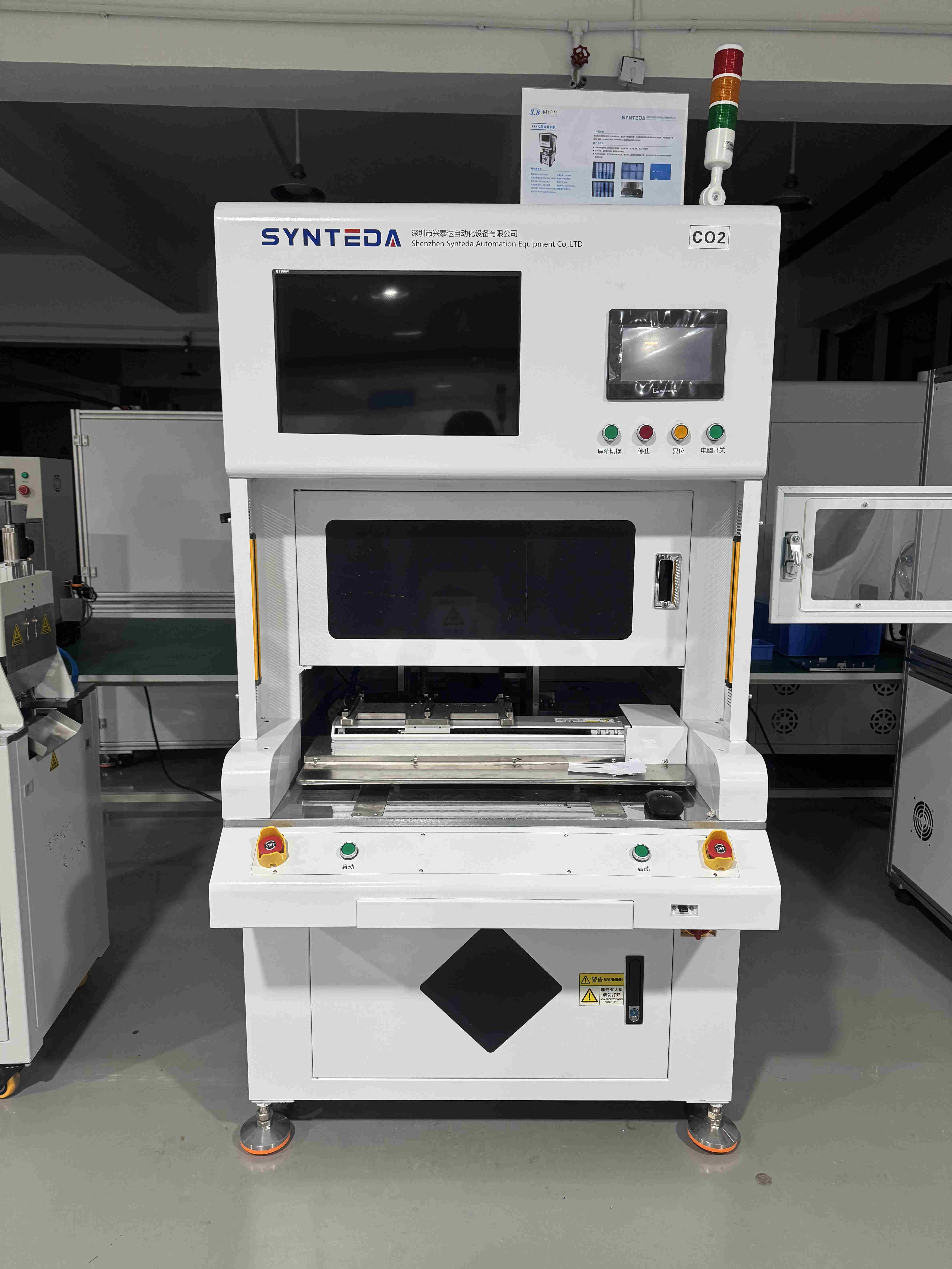

Product Overview:

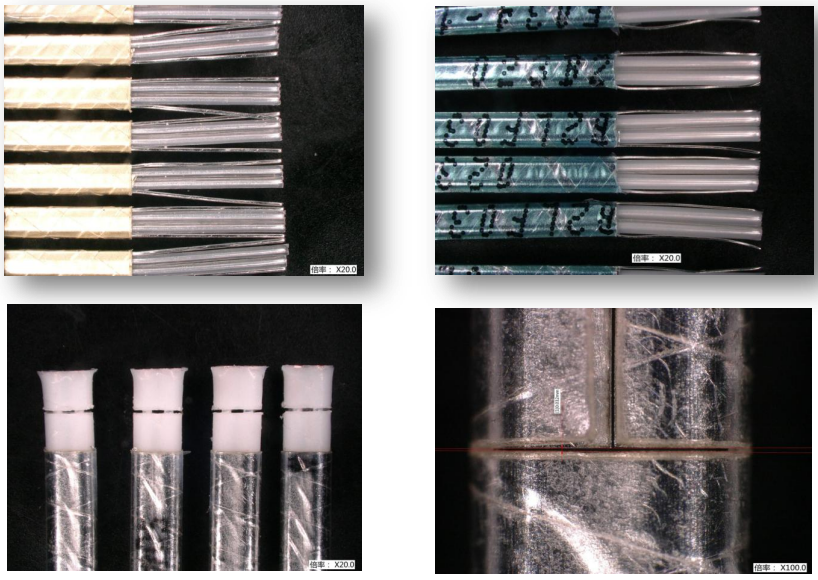

This CO2 laser machine is widely used in the high-speed cable field for insulation layer cutting, delivering high precision and repeatability. It is also suitable for stripping high-speed cables, flat cables, HDMI cables, ribbon cables, and ultra-fine coaxial cables above AWG#30.

Product Advantages:

• Employs high-end lasers, ensuring stable laser output power, rapid light emission, high beam quality, and consistent processing results.

• Water-cooled cooling system provides high equipment stability and low after-sales maintenance costs.

• Motorized focal length adjustment allows for quick focus positioning, reducing unstable stripping effects caused by unstable factors (e.g., low precision, positional slippage) brought by manual adjustments.

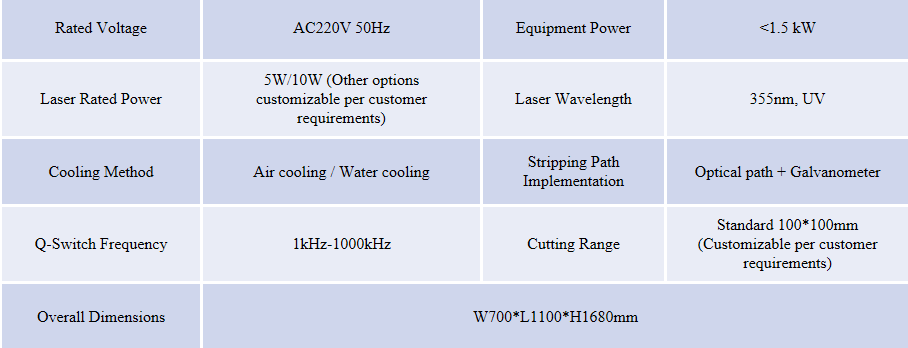

Equipment Parameters:

Equipment Features:

1. Non-contact cutting enables precise control of wire stripping position, dimensions, and depth with high repeatability.

2. Single-head sequential light emission or dual-head simultaneous light emission ensures high speed and efficiency.

3. All cutting-related files can be saved or edited as required.

4. Capable of standalone operation or integration with automated production lines.

Application Fields:

CO2 laser stripping machines are primarily used for cutting non-metallic materials, including chlorides of ethylene polymers, fiberglass, polyesters, polyester films, fluoropolymers, nylon, polyethylene, silicone rubber, and other insulation materials with varying hardness or high-temperature resistance.
