Product Overview:
This series of hot bar soldering platforms features dual-soldering module design, enabling full-machine motion control in the XYZ directions. High motion accuracy is achieved via servo motors and precision lead screws, while advanced power control system ensures exceptional soldering stability. It can solder large format PCBs in a single operation and can solder multiple products simultaneously, thereby achieving higher welding efficiency.

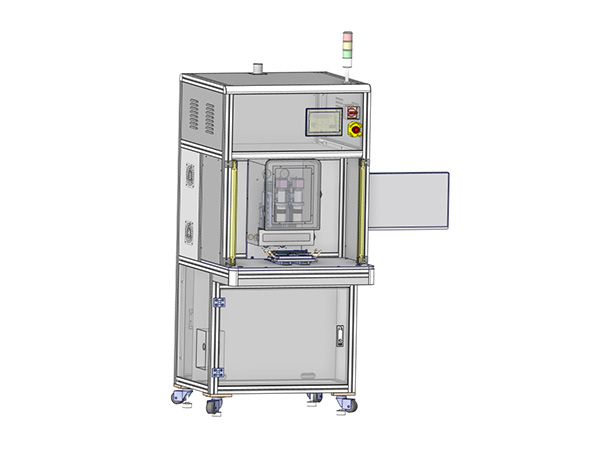

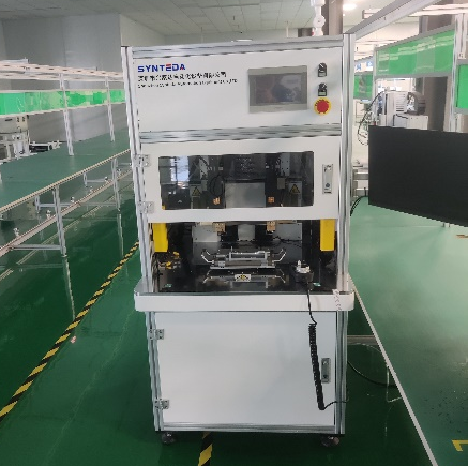

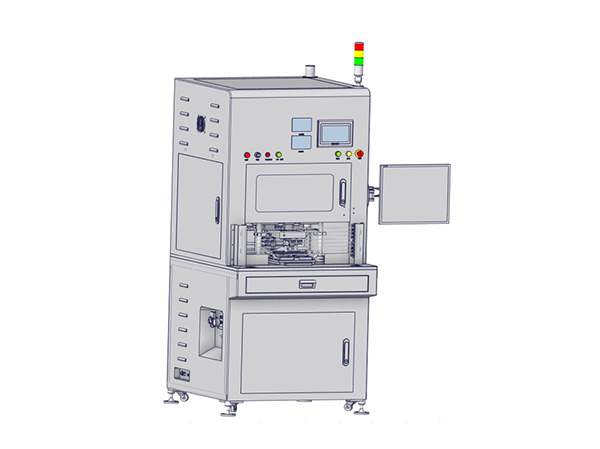

Equipment Introduction: High-Speed Precision Servo Soldering Machine (3-axis or 5-axis configuration selectable per product requirements)
Workflow: Place the fixture and product onto the work platform→Initiate automated soldering cycle→Unload finished product (optional soldering CCD monitoring)
Product Advantages:
Servo motor drive with repeatability accuracy of ±0.02mm
Capable of soldering smaller products such as protection boards and precision parts, and can batch-solder multiple products in a single operation
Equipped with temperature monitoring function, with LED real-time display of current thermode temperature and temperature curve during soldering process
Dual-pulse precision control, with independent parameter setting for each pulse (temp/time/ramp rate)
Expandable automated production line, capable of storing 20 sets of different soldering parameters
Programmable Z-axis height control
Heating tip cooling airflow management
Closed-loop control using thermocouples for temperature monitoring and feedback, ensuring more stable soldering performance
Driven by servo modules for high precision and accurate positioning
Hot Bar soldering technology ensures stable and reliable performance
Dual-head synchronous soldering doubles throughput

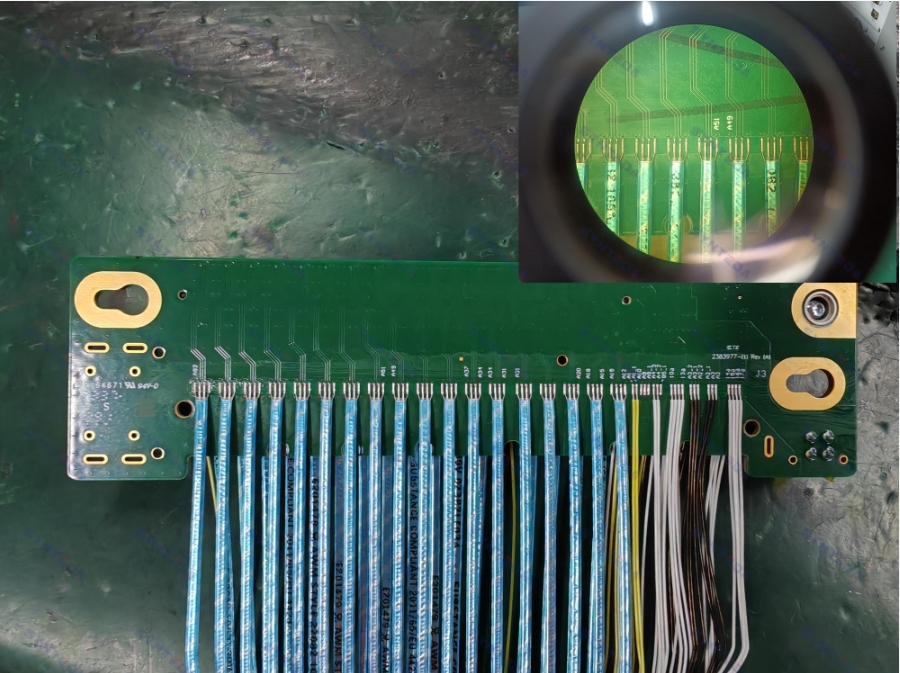

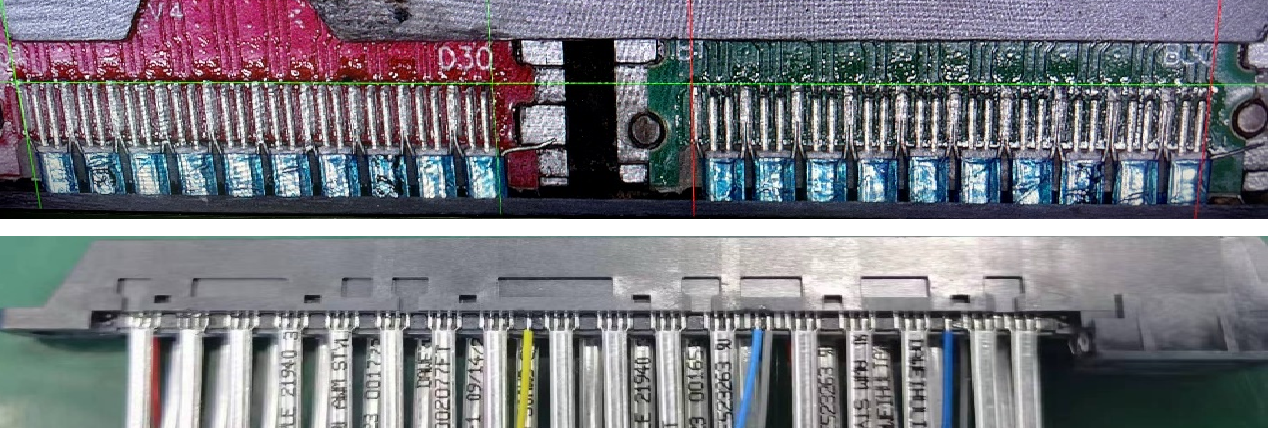

High-Speed Cable Soldering Renderings:
