Product Overview:
Building upon the 3D visual positioning PGRS soldering platform, this equipment integrates an on-line loading/unloading system, further enhancing the automation level of this station, and achieving automatic loading, vision recognition, conductor alignment, soldering, and unloading.
Product Advantages：
Automatic loading/unloading, along with a fixture reflow system, further reduce labour requirements and improve efficiency
3D visual positioning and automatic conductor alignment reduce reliance on personnel skills and enhance the stability of soldering results
The soldering process is fast, with minimal heat input in the soldering area, causing minimal impact on the product, particularly advantageous for high-speed cable products

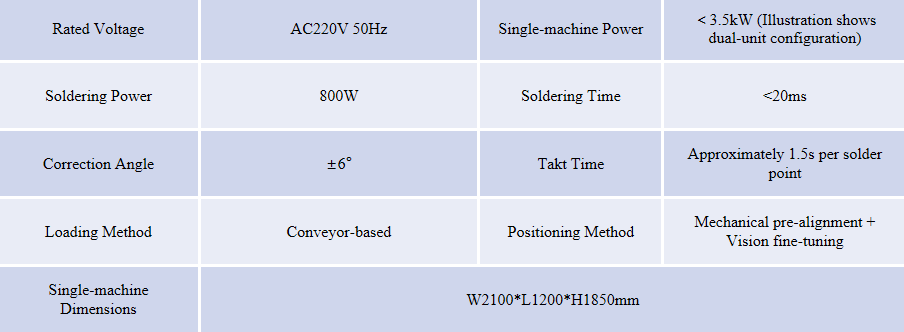

Equipment Parameters:

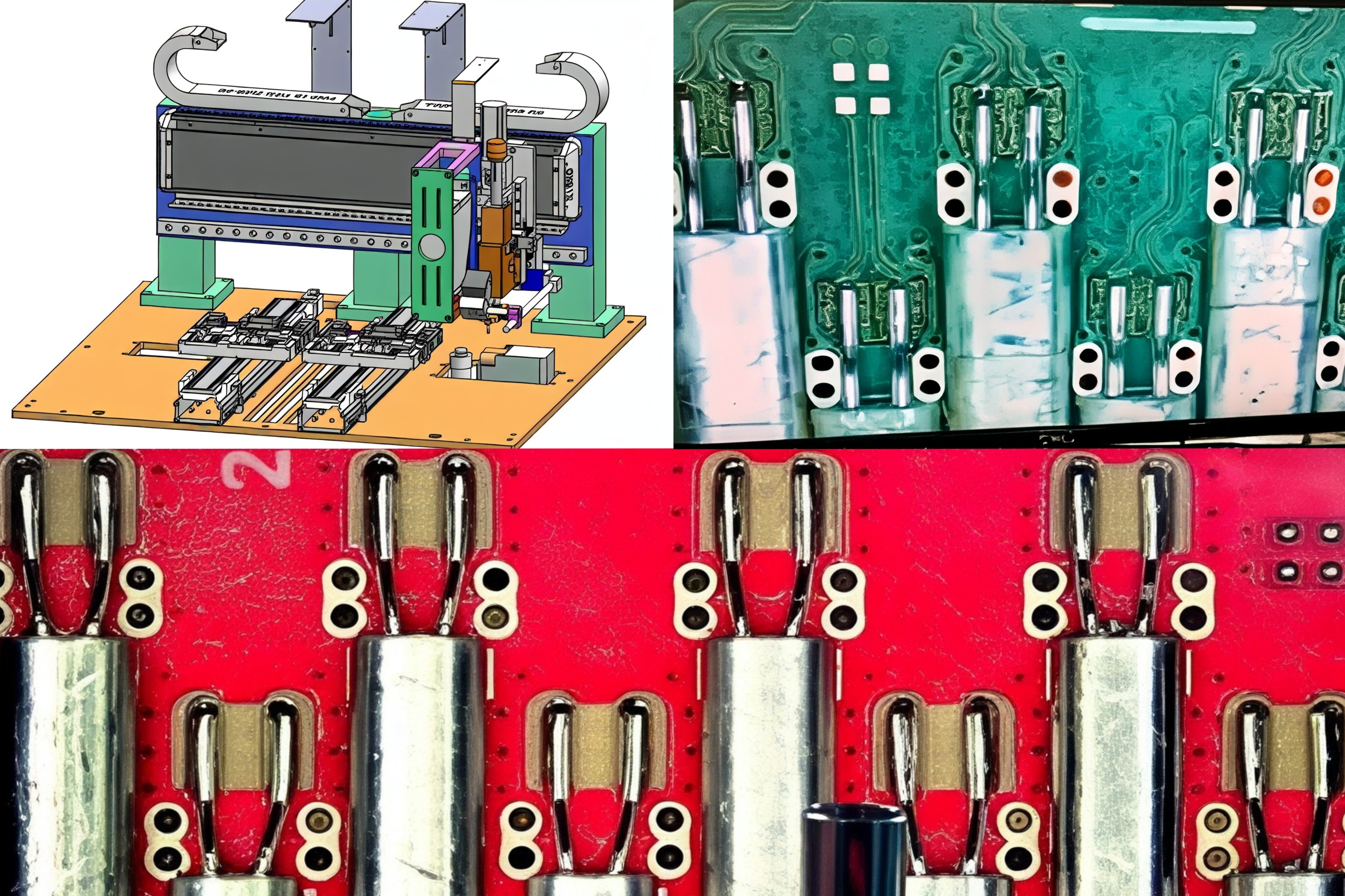

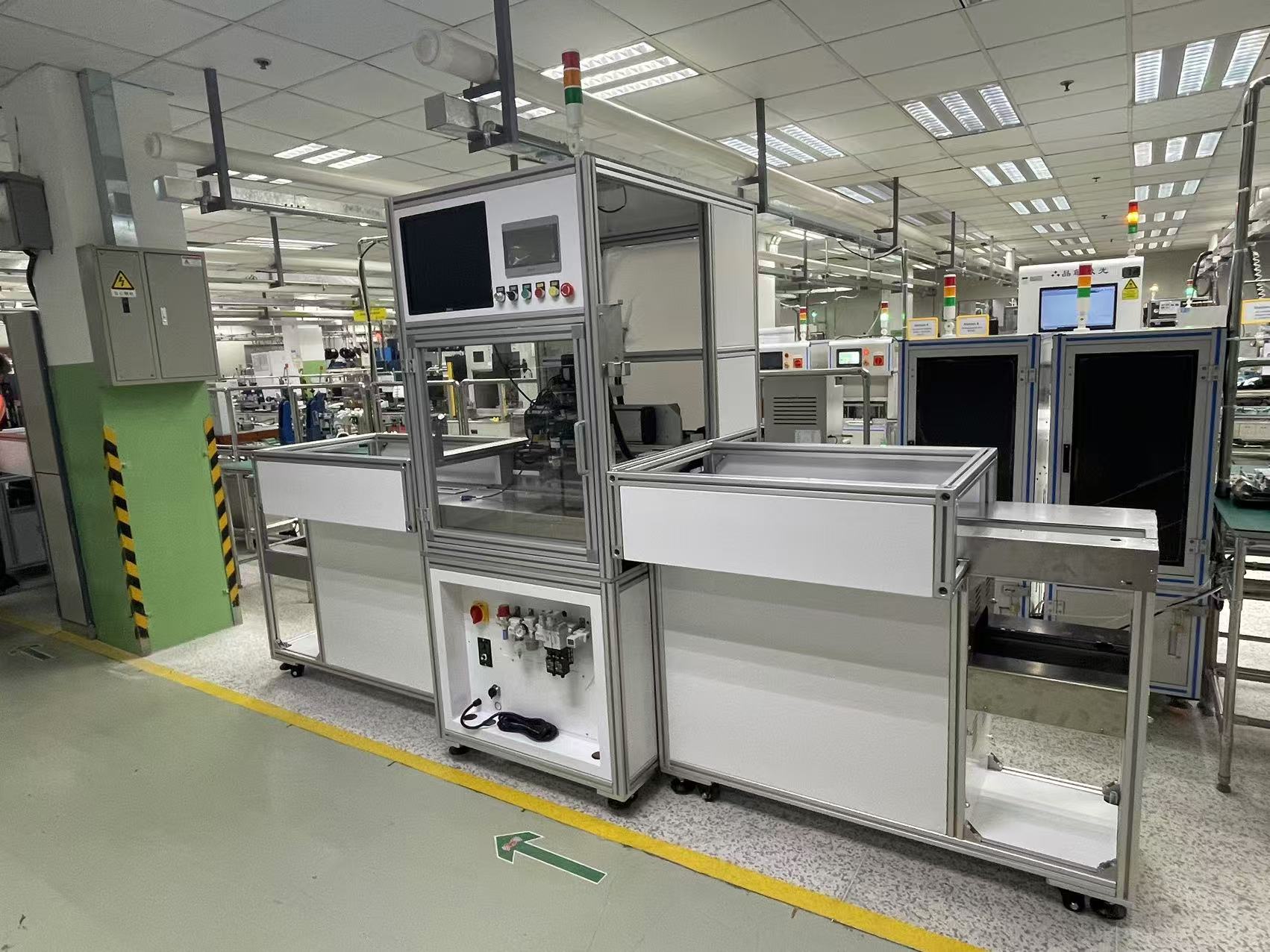

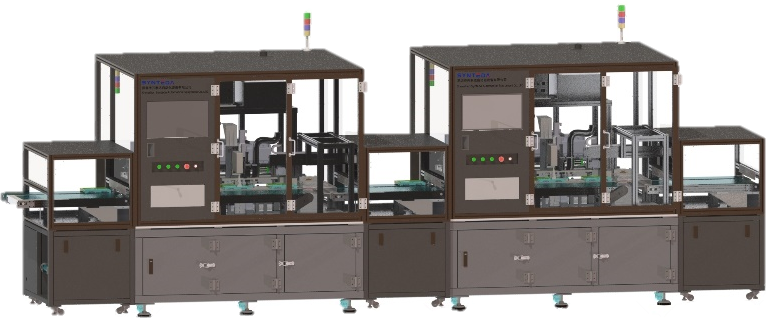

Product Renderings:
