Product Overview:
This series of Hot Bar Soldering Platforms addresses the wide soldering range common in high-speed cable industry PCIE products. Through structural optimization and precise adjustment of local resistance values in the soldering plate, the overall thermal balance of the soldering plate is improved, resolving the issue of uneven temperature distribution during single-pass soldering of wide-area products.This reduces multi-equipment investments while doubling soldering efficiency.
Product Advantages：
Servo motor drive with repeatability up to ±0.02mm

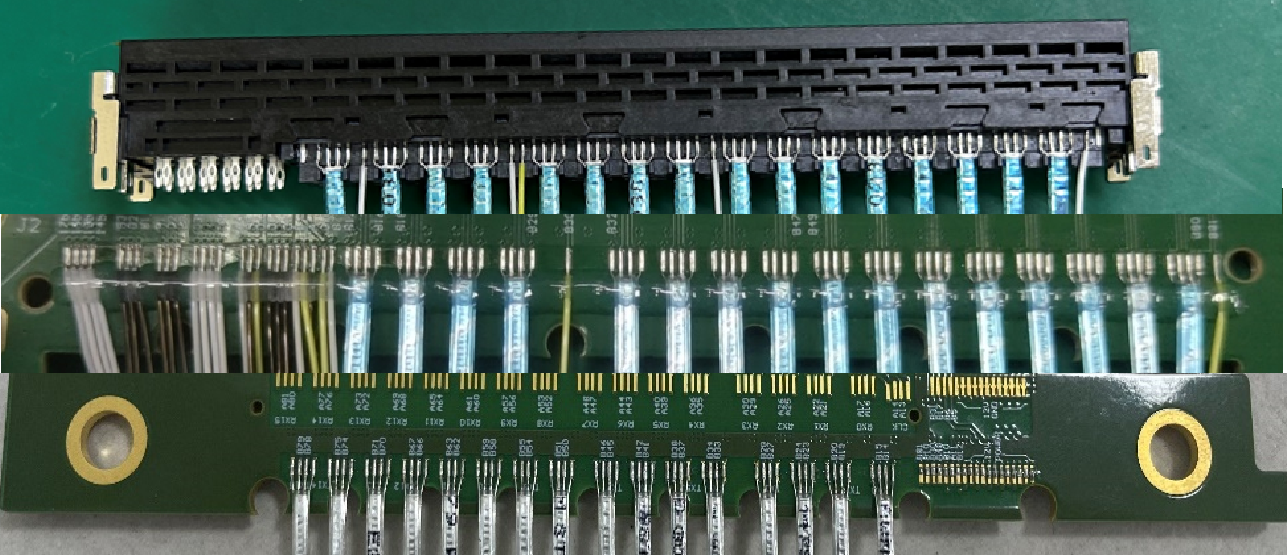

Soldering range of 20~110mm, capable of single-pass soldering for wide products (e.g., PCIE, CEM), significantly improving soldering efficiency
Minimal temperature deviation of the thermode, with accuracy of ±5°, and temperature calibration via a temperature meter, ensuring stable and reliable soldering results

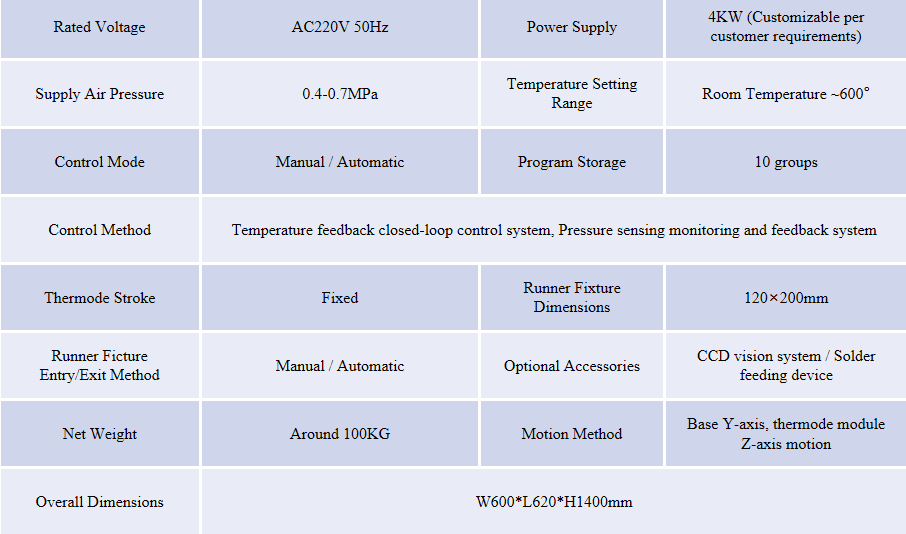

Equipment Parameters:

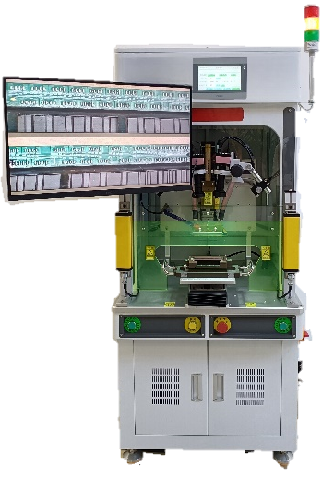

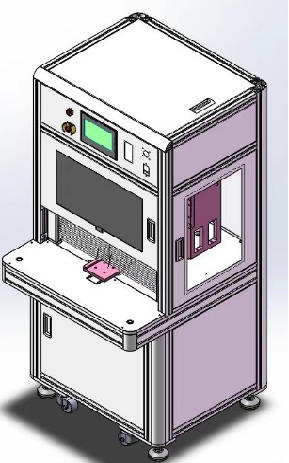

Product Renderings:
