Product Overview:

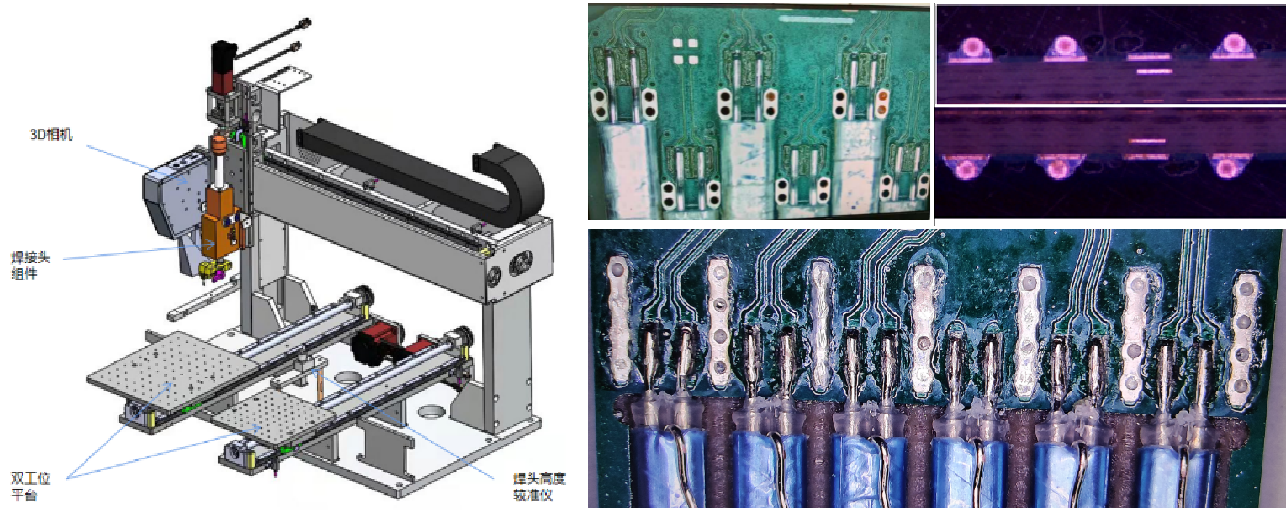

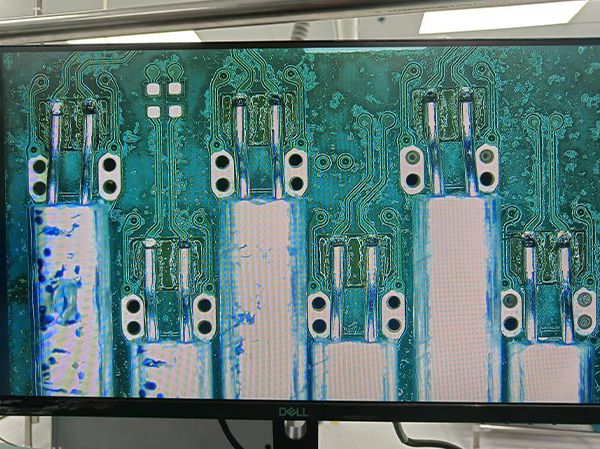

This equipment utilizes a 3D vision system to capture positions of PCB pads and conductors. It calculates positional deviation between conductors and pads, then feeds deviation data to the processing unit. The soldering module uses this data to perform auto-alignment correction via a specially designed thermode, enabling rapid high-current soldering.
Product Advantages:
3D vision positioning with automatic conductor alignment reduces reliance on operator skill, and ensures consistent soldering quality
High-speed soldering process with minimal thermal input to the soldering area minimizes thermal impact on products, particularly advantageous for high-speed cable products

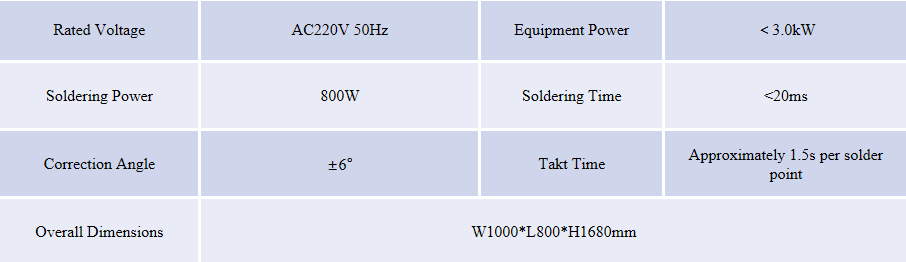

Equipment Parameters:

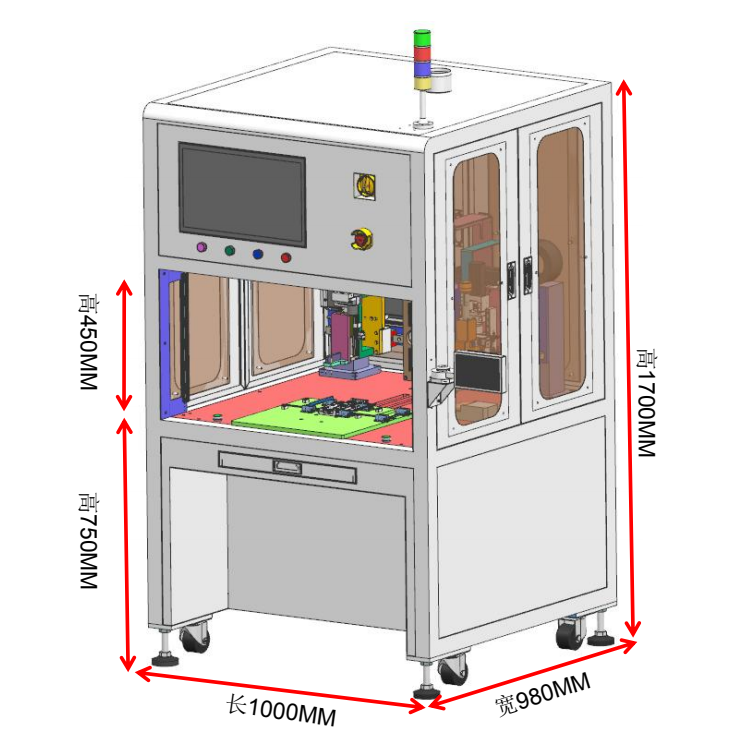

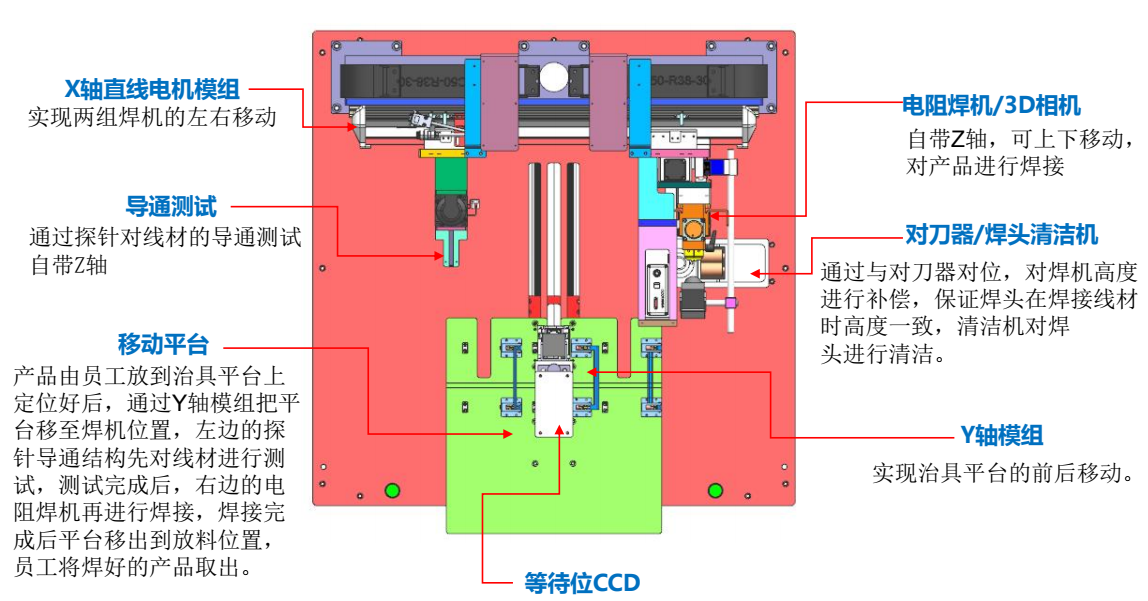

Overview of Appearance - Identification of Each Part:

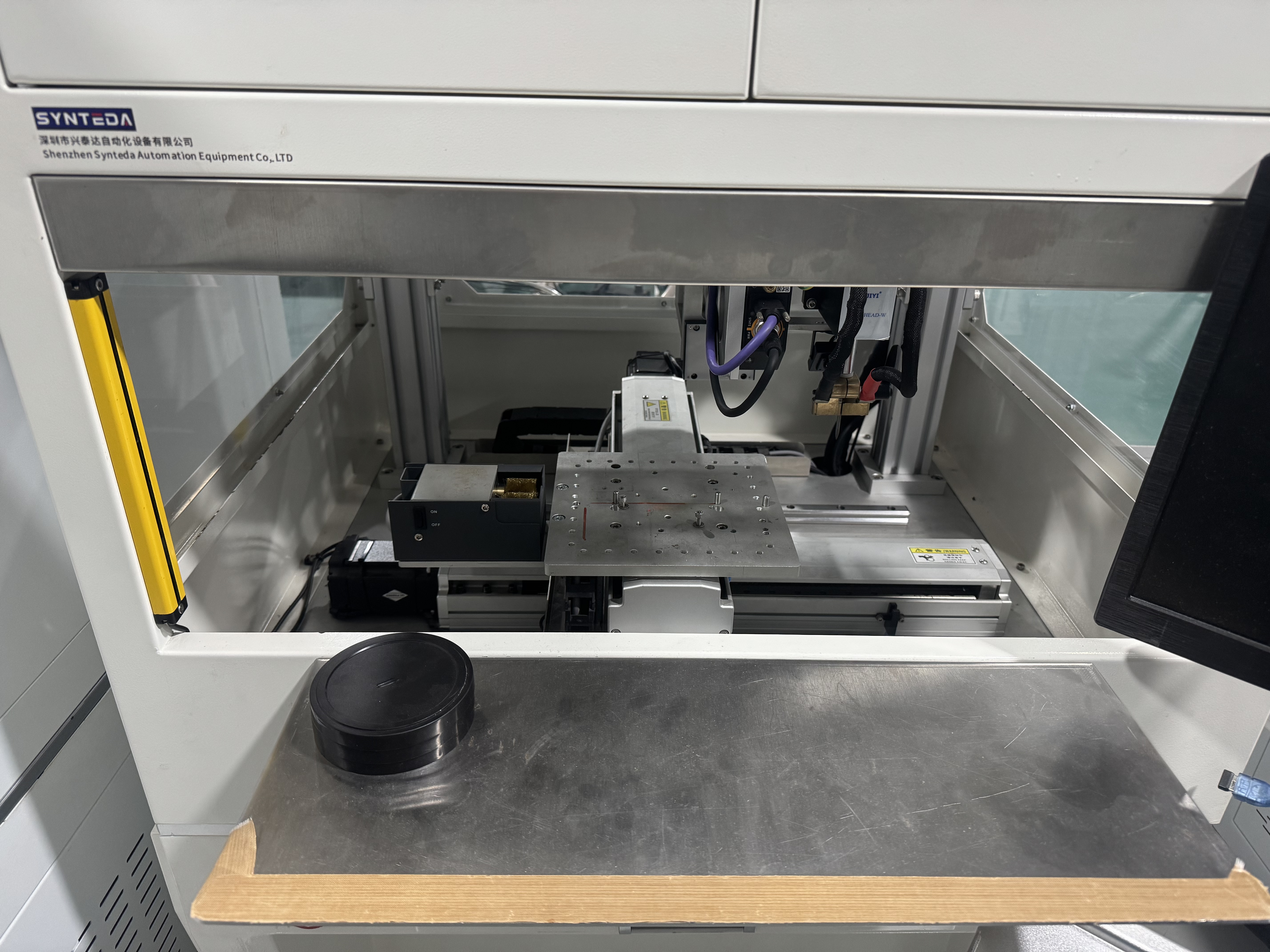

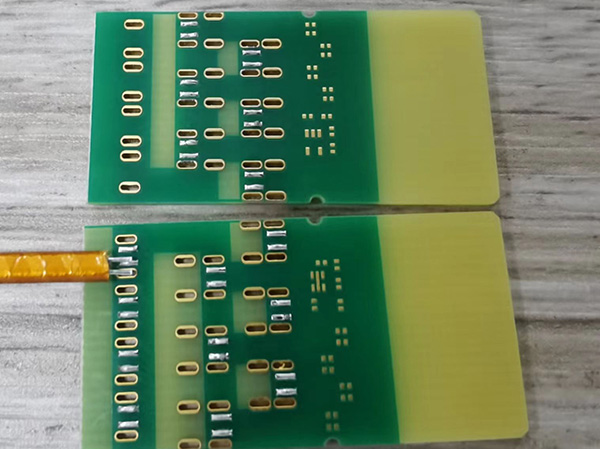

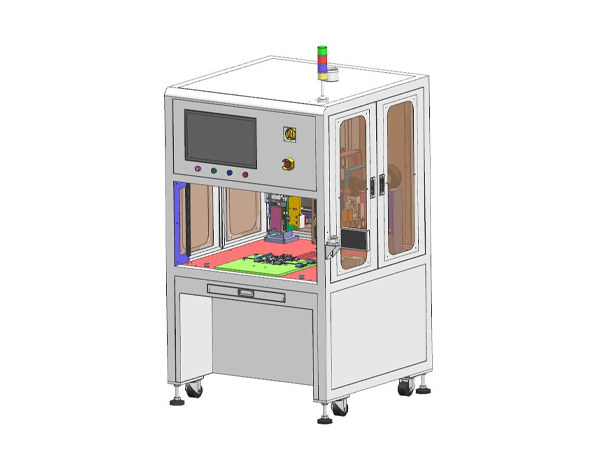

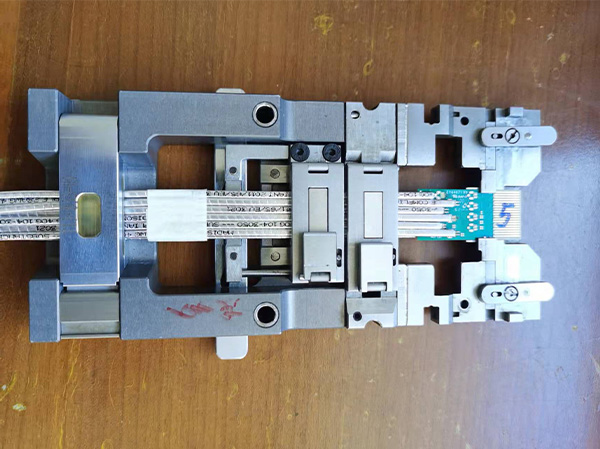

Product Renderings:
