Product Overview:

This solution enables automated loading, staged pins insertion, and assembly of multi-component DDR connector series, with the function of 100% electrical performance testing and AOI inspection.

Product Features:

CT ≤2.2 s/unit (DDR5 compatible)

288-pin staged insertion, total of 4 insertions (based on HSG characteristics)

100% electrical performance testing & AOI inspection

High-speed cam-driven pin insertion

Cam rotation speed: 1000 rpm (DDR2 compatible)

Main Production Process:

Tube Loading (HSG) → Staged Pins Insertion → Final Press-Fit & Break-off → Plates Insertion → CCD Inspection → Defective Product Removal → Electrical Testing → CCD Inspection → Defective Product  Removal → Latch Assembly → Mylar Attachment → Flatness Testing → Laser Marking → Tray Packaging

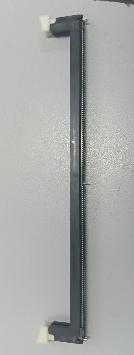

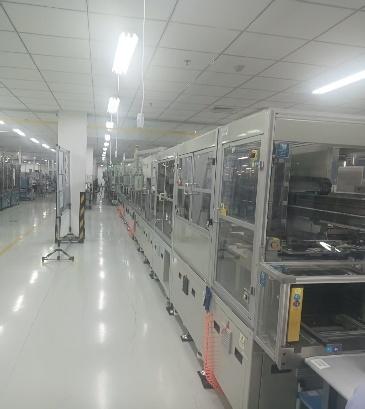

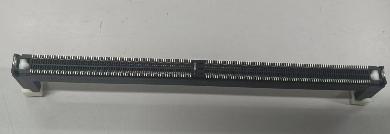

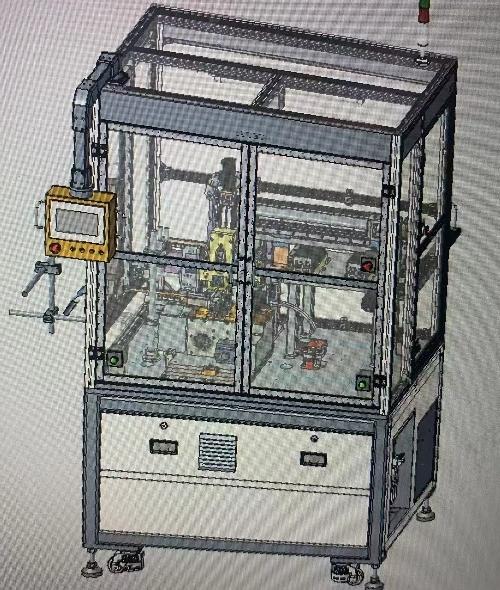

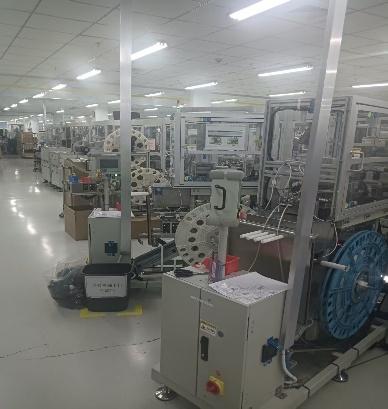

Product Renderings:
