Product Overview:
This integrated system automates high-speed cable preparing through sequential stations: Manual Loading Table → Lift → UV Laser Stripping → Foil Swing → Foil Remove → CO2 Dielectric Stripping → Dielectric Remove → Conductor Pre-Forming → Conductor Final-Trimming.
Product Advantages:
Single-pass processing with multi-station integration reduces labor requirements and boost throughput.
Output capacity: 1,000 pcs/shift (standard), expandable to 2,000 pcs/shift via modular upgrades.

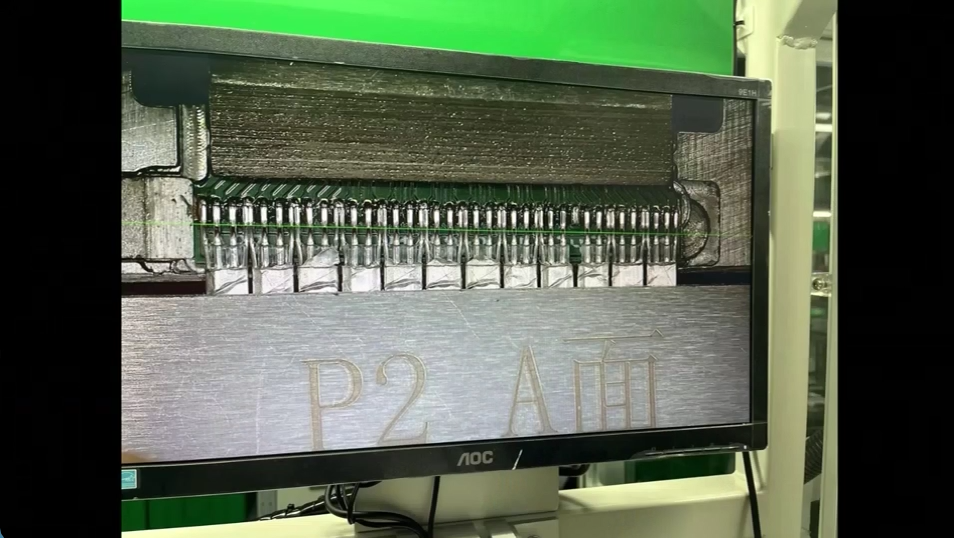

Video monitoring enables visualization and real-time monitoring of the production site.
Auto-records production data for production tracking and verification.
Data ports are reserved for connecting MES system or self-developed web programs, enabling smart manufacturing.

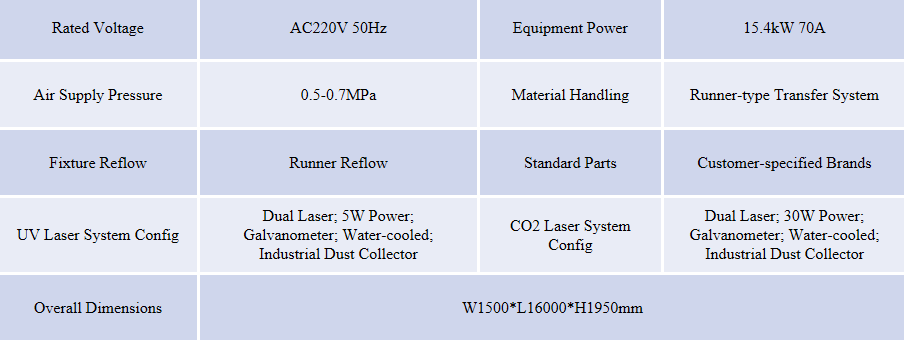

Equipment Parameters:

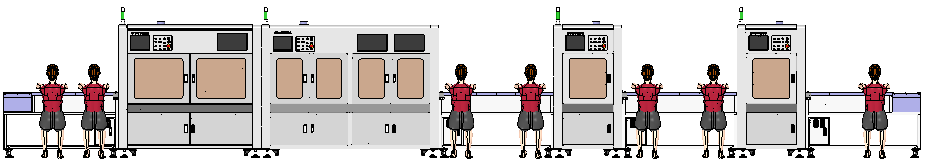

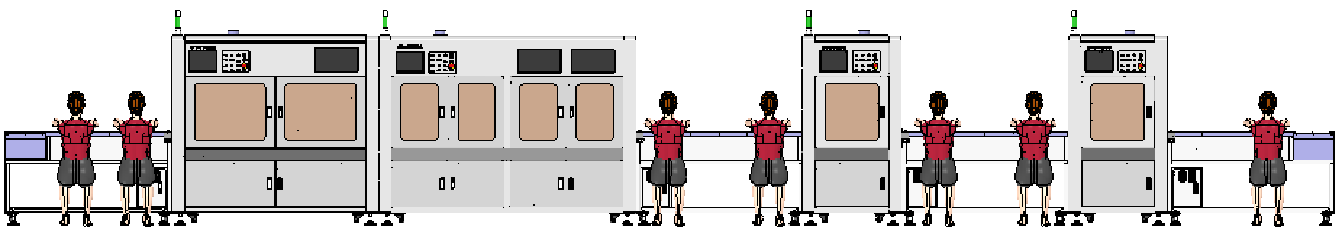

Product Renderings:
